NoKIA SR Devices

Now we are coming to the fun part Where we talk about the enterprise nature of Nokia SR

The term "SR" stands for service router. Formerly known as Alcatel-Lucent, Nokia's SR routers are among the most popular in enterprise routing. Their popularity likely stems from being specifically designed for service routing. While capable of basic routing tasks, these routers truly excel in enterprise-level routing. Presently, several Nokia devices operate on SROS (Service Router Operating System). For practicality, we will concentrate on the 7705 model for configuration labs. Once familiar with the 7705, you'll be equipped to handle any device running SROS. However, for the examination, questions will pertain to the 7750 model, which boasts greater capacity than the 7705. This chapter aims to introduce the hardware, functionalities, and basic configurations of these exceptional devices.


The Nokia 7750 is available in twelve distinct variants and chassis types, all functioning on the SR platform. As they operate on the same OS platform, the CLI commands remain consistent. The variants are listed below.

7750 DESCRIPTIONS

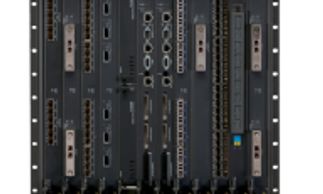

7750 SR 12e

7750 SR 12e

7750 SR 12e

The system includes two dedicated slots for the Switch Fabric Module (SFM), also known as the Control Processor Module (CPM). These modules are hot-swappable and duplicated for redundancy, enabling active-active load sharing. It features an enhanced fan tray and supports additional CPMs compared to the 7750 SR-12. The system provides nine slots for various MDAs (IOM-based) and is exclusively available with DC power, incorporating a 4+1 power redundancy scheme.

7750 SR 12

7750 SR 12e

7750 SR 12e

This is similar to the 7750 SR 12e, except it differs in chassis dimensions and capacity. The 12e can handle more throughput. Slots A and B at the center are reserved for the CPM. Slots 1-5 and 6-10 are designated for Media Dependent Adapters (MDAs), which act as baseboards for Input and Output Modules (IOMs) and provide only Layer 1 physical functionalities.

7750 SR 7

7750 SR 7

7750 SR 7

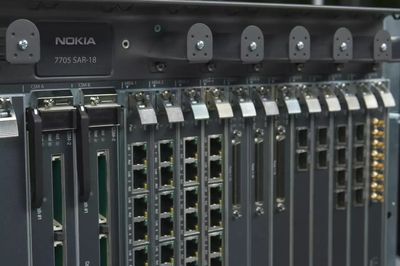

The 7705 SR7 includes two slots specifically reserved for CSM cards, typically located at the bottom of the device. Slots 1-5 are designated for MDA cards. Power specifications can be either DC or AC, depending on your requirements.

7750 SR 1

7750 SR 7

7750 SR 7

This is the most compact model of the 7750, ideal for small Points of Presence (PoPs). It features a single slot for an MDA and is available in both DC and AC variants.

Networking Niche IT Solutions

7750 SR-1x-92S, SR-1-92S, SR-1-46S

7750 SR-1x-92S, SR-1-92S, SR-1-46S

7750 SR-1x-92S, SR-1-92S, SR-1-46S

The following models, 7750 SR-1x-92S, SR-1-92S, and SR-1-46S, represent the higher capacity within the SR-1 series. Their capabilities include:


- 6 Tb/s or 2.8 Tb/s (FD); 2RU

- Fixed configuration, up to 6 Tb/s (FD)/12.8 Tb/s IA

- 12 x 800G QSFP-DD ports

- 24 x 400G QSFP-DD ports

- 128 x 100G QSFP28 ports

- 200 x 10G QSFP28 ports

- 80 x 100G SFP-DD ports

- 40 x 200G SFP-DD ports

7750 SR-14s

7750 SR-1x-92S, SR-1-92S, SR-1-46S

7750 SR-1x-92S, SR-1-92S, SR-1-46S



The 7750 SR-14s boasts the following robust features:

· 216 Tb/s (full-duplex); available in 27RU or 28RU sizes

· 12 slots supporting 18 Tb/s (full-duplex) or 19.2 Tb/s (instantaneous architecture)

· 288 ports of 800G QSFP-DD

· 576 ports of 400G QSFP-DD

· 2304 ports of 100G QSFP28

· 4320 ports of 10G QSFP28

· 384 ports of 200G SFP-DD

7750 SR-12e

7750 SR-1x-92S, SR-1-92S, SR-1-46S

7750 SR-12/7450 ESS-12



The 7750 SR-12e is the upcoming model equipped with these features:

· 13.5 Tb/s (FD) in a 22RU form factor

· 9 slots supporting 1.5 Tb/s (FD) or 4 Tb/s IA

· 72 ports of 400G QSFP-DD

· 360 ports of 100G QSFP28 and 2160 ports of 10G QSFP28

· 288 ports of 10/25G SFP28 and 720 ports of 1G CSFP

7750 SR-12/7450 ESS-12

7750 SR-12/7450 ESS-12

7750 SR-12/7450 ESS-12

Third in the lineup is the 7750 SR-12/7450 ESS-12. The following functions are available

1. 7750 SR-12/7450 ESS-12

   - 8 Tb/s (FD); 14RU

   - 10 slots of 800 Gb/s (FD)/1.2 Tb/s IA

   - 40 x 400G QSFP-DD

   - 120 x 100G QSFP28

   - 1200 x 10G QSFP28

   - 320 x 10/25G SFP28

   - 800 x 1G CSFP

7750s

7750 SR-12/7450 ESS-12

7750 SR-7/7450 ESS-7

The 7750s boast greater capacity than the 7750 in the subsequent frame. The specifications for the 7750 SR-7s include:

· 108 Tb/s (FD); occupying 16RU or 17RU

· 6 slots with 18 Tb/s (FD) or 19.2 Tb/s IA

· 144 ports of 800G QSFP-DD

· 288 ports of 400G QSFP-DD

· 1152 ports of 100G QSFP28

· 2160 ports of 10G QSFP28

· 192 ports of 200G SFP-DD

7750 SR-7/7450 ESS-7

7750 SR-12/7450 ESS-12

7750 SR-7/7450 ESS-7

The 7750 SR-7 and the 7450 ESS-7 are more compact versions, slightly reducing capacity but still offering fantastic functionality with the following features:

· 4 Tb/s (FD); 8RU

· 5 slots of 800 Gb/s (FD)/1.2 Tb/s IA

· 20 x 400G QSFP-DD

· 60 x 100G QSFP28

· 600 x 10G QSFP28

· 160 x 10/25G SFP28

· 400 x 1G CSFP

7750 SR-2se

7750 SR-2se

7750 SR-2se

Next is the 7750 SR-2se, which is more compact and offers the following features:

· 36 Tb/s (FD); 5RU

· 2 slots of 18 Tb/s (FD)/19.2 Tb/s IA

· 48 x 800G QSFP-DD

· 96 x 400G QSFP-DD

· 384 x 100G QSFP28

· 720 x 10G QSFP28

· 64 x 200G SFP-DD


7750 SR-2se

7750 SR-2se

7750 SR-2se

Next is the 7750 SR-2se, which is more compact and offers the following features:

· 36 Tb/s (FD); 5RU

· 2 slots of 18 Tb/s (FD)/19.2 Tb/s IA

· 48 x 800G QSFP-DD

· 96 x 400G QSFP-DD

· 384 x 100G QSFP28

· 720 x 10G QSFP28

· 64 x 200G SFP-DD


7750 SR-2s

7750 SR-2se

7750 SR-1x-92S, SR-1-92S, SR-1-46S

The 7750 SR-2s is a compact model that offers the following features:

· 9.6 Tb/s (full-duplex); 5RU

· 2 slots of 4.8 Tb/s (full-duplex)/12 Tb/s (interface adapter)

· 48 x 400G QSFP-DD ports

· 240 x 100G QSFP28 ports

· 720 x 10G SFP28 ports

· 64 x 100G SFP-DD ports

7750 SR-1x-92S, SR-1-92S, SR-1-46S

7750 SR-1x-92S, SR-1-92S, SR-1-46S

7750 SR-1x-92S, SR-1-92S, SR-1-46S

The inaugural models of the SR-1 series include the 7750 SR-1x-92S, SR-1-92S, and SR-1-46S. They offer:

- 6 Tb/s or 2.8 Tb/s (full duplex); 2RU in size

- Fixed configuration, up to 6 Tb/s (full duplex)/12.8 Tb/s with intelligent aggregation

- 12 ports of 800G QSFP-DD

- 24 ports of 400G QSFP-DD

- 128 ports of 100G QSFP28

- 200 ports of 10G QSFP28

- 80 ports of 100G SFP-DD

- 40 ports of 200G SFP-DD

7750 SR-1x-48D, SR-1-48D, SR-1-24D

7750 SR-1x-92S, SR-1-92S, SR-1-46S

7750 SR-1x-48D, SR-1-48D, SR-1-24D

Next, we have the 7750 SR-1x-48D, SR-1-48D, SR-1-24D, with capacities as follows:

- 6 Tb/s or 2.8 Tb/s (full duplex); 2RU

- Fixed, up to 6 Tb/s (full duplex)/19.2 Tb/s IA

- 48 x 800G QSFP-DD

- 96 x 400G QSFP-DD

- 384 x 100G QSFP28

- 480 x 10G QSFP28

7750 SR-1s

7750 SR-1x-92S, SR-1-92S, SR-1-46S

7750 SR-1x-48D, SR-1-48D, SR-1-24D

Next is the SR-1s. Its capacities are detailed below:


· Fixed: 4.8 Tb/s (FD), 2.4 Tb/s (FD); 3RU Modular: 3 Tb/s (FD); 3RU

· Up to 4.8 Tb/s (FD)/12 Tb/s Intelligent Aggregation (IA)

· 24 x 400G QSFP-DD

· 120 x 100G QSFP28

· 360 x 10G QSFP28

· 32 x 100G SFP-DD

7750/7450 variants

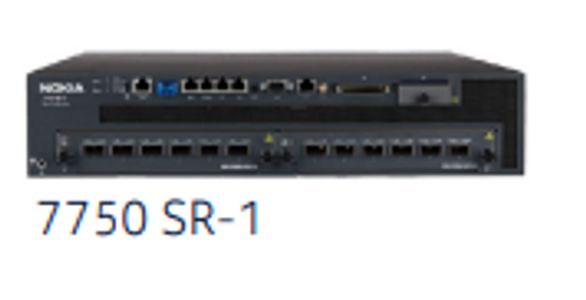

Finally we have the 7750-SR-1

This is the most compact model in the 7750 series. Its capacity is detailed below:

· 1.5 Tb/s (FD); 2RU

· Modular, 1.5 Tb/s (FD)/4.0 Tb/s IA

· 8 x 400G QSFP-DD

· 40 x 100G QSFP28

· 240 x 10G QSFP28

· 32 x 10/25G SFP28
